AiNUC™ · Powered by Intel®

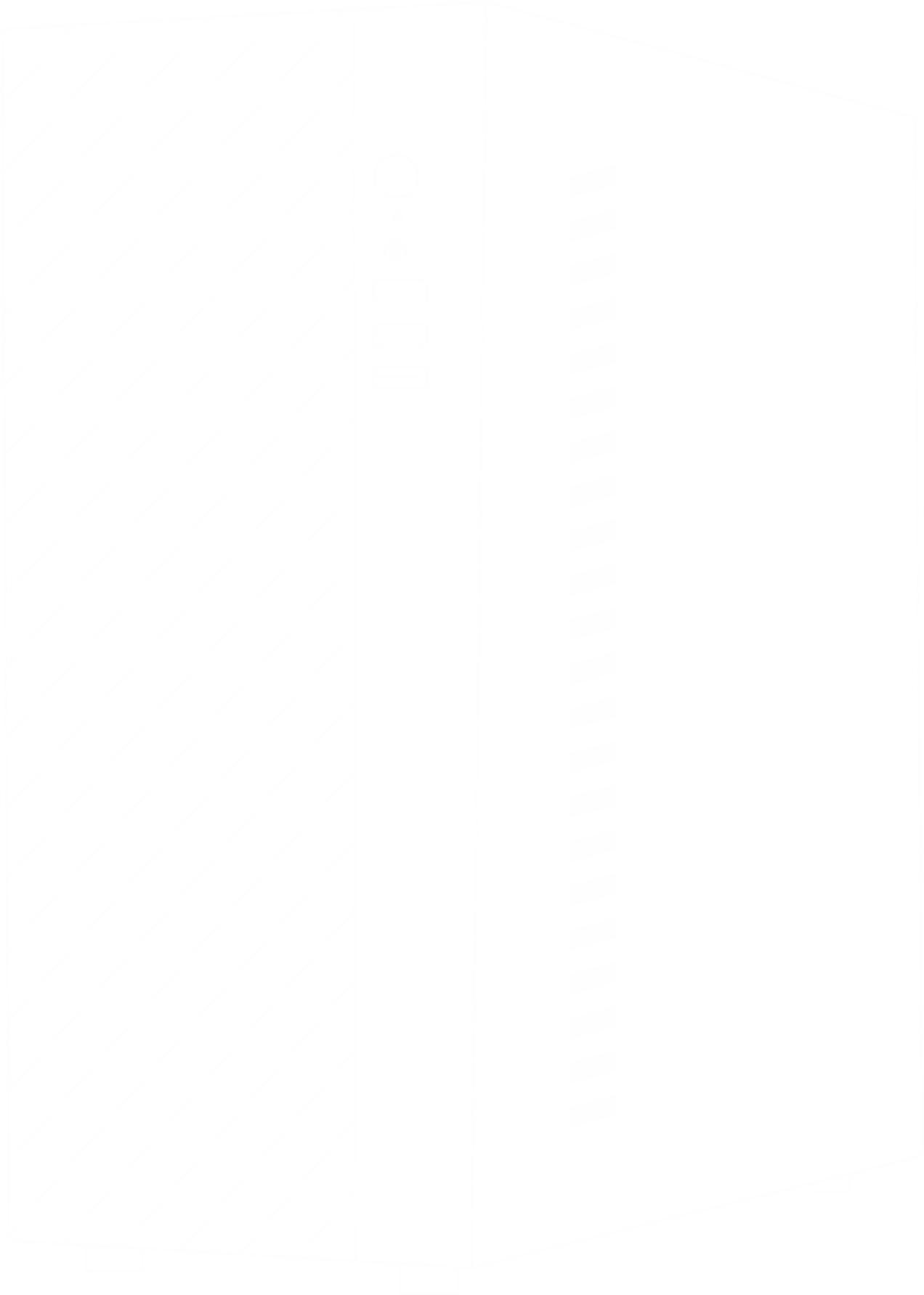

AI Mini Tower
PDLMT-265-AI

Model: PDLMT-265-AI

A powerful AI Mini Tower PC reimagined for the modern edge AI. Driven by Intel® Core™ Ultra 7 Processor 265 with Intel® AI Boost NPU — workstation-class AI inferencing in a compact form factor.

Intel® Core™ Ultra 7 265 Intel® AI Boost NPU DDR5 6400 MT/s Wi-Fi 6E Quad Display
Enquire Now

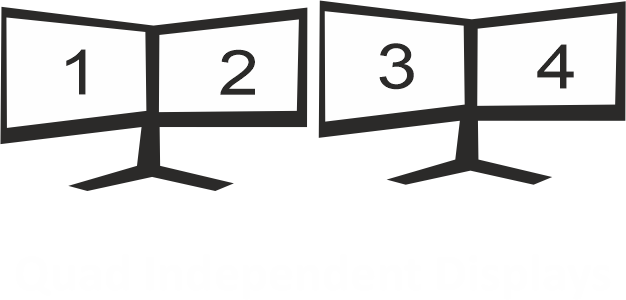

AI Mini Tower PDLMT-265-AI Quad Independent Displays
Key Features

Built for Edge AI

Workstation-class performance in a space-saving Micro ATX tower design.
🧠

AI Ready

Intel® Core™ Ultra 7 265 with Intel® AI Boost NPU for on-device AI inferencing

🖥️

Quad Display

4 simultaneous displays — 2× HDMI + 1× DisplayPort + 1× USB4® Type-C

⚡

DDR5 Memory

4× DDR5 DIMM slots supporting up to 6400 MT/s for demanding workloads

📡

Wi-Fi 6E

Realtek® RTL8852CE — 2.4/5/6 GHz bands, Bluetooth 5.3, 160MHz support

💾

Gen5 NVMe SSD

Up to 2TB M.2 2280 PCIe Gen5 + Gen4 dual SSD slots for maximum throughput

🌐

2.5GbE LAN

Realtek® 2.5 Gbps Ethernet for high-speed wired connectivity

🔊

7.1 Audio

Realtek® HD Audio with S/PDIF Out — up to 7.1 channel surround

🐧

Dual OS Ready

Runs reliably on Windows 11 or Ubuntu Linux for enterprise & developer use

Technical Specifications

Detailed Specs

Model: PDLMT-265-AI
Motherboard Micro ATX Form Factor
CPU & Chipset Intel® Core™ Ultra 7 Processor 265
Chipset: Intel® B860 Express
Memory 4 × DDR5 DIMM Slots
Supports 6400 / 5600 / 5200 / 5000 / 4800 MT/s SD RAM (by CPU selection)
Storage
  • 256GB / 512GB / 1TB / 2TB M.2 2280 PCIe Up to Gen5 Performance SSD
  • 256GB / 512GB / 1TB / 2TB M.2 2280 PCIe Up to Gen4 Performance SSD
Graphics Integrated Intel® HD Graphics
  • 1× USB4® Type-C® (DisplayPort) — 3840×2160 @144Hz (DP 2.1)
  • 1× DisplayPort — 3840×2160 @144Hz (DP 2.1)
  • 1× HDMI — 4096×2160 @60Hz (HDMI 2.1, HDCP 2.3)
  • 1× Front HDMI (via extender) — 1920×1080 @30Hz (HDMI 1.4)
Support for up to quad-display simultaneously
Audio Realtek® HD Audio — 2/4/5.1/7.1-channel
S/PDIF Out supported
LAN Realtek® 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Realtek® Wi-Fi 6E RTL8852CE
802.11 a/b/g/n/ac/ax — 2.4/5/6 GHz
Bluetooth 5.3 · 160MHz support
Front I/O 2× USB 2.0 · 1× USB 3.0 · HD Audio & Mic In
Rear I/O
  • 4× USB 2.0/1.1
  • 4× USB 3.2 Gen 1
  • 2× USB 3.2 Gen 2 Type-A (red)
  • 1× DisplayPort · 1× USB4® Type-C (DisplayPort)
  • 1× HDMI · 1× HDMI (header)
  • 1× RJ-45 · 2× Antenna connectors (2T2R)
  • 2× Audio jacks · 1× Optical S/PDIF Out
Dimensions 375 (L) × 185 (W) × 365 (H) mm
Power Supply 250W Standard Efficiency, ATX, 230 VAC
Applications

Built For

Wherever space is limited and performance matters.
🤖

Edge AI

On-device AI inferencing, ML model deployment, real-time analytics

📺

Digital Signage

Quad-display video walls, menu boards, information kiosks

🏭

Industrial Automation

Factory floor computing, quality inspection, process control

💼

Office Productivity

Multi-monitor workstations, data analysis, enterprise desktops

Interested in PDLMT-265-AI?

Get in touch with our team for pricing, bulk orders and customisation options.

Contact Us on WhatsApp
or email info@panachedigilife.com
